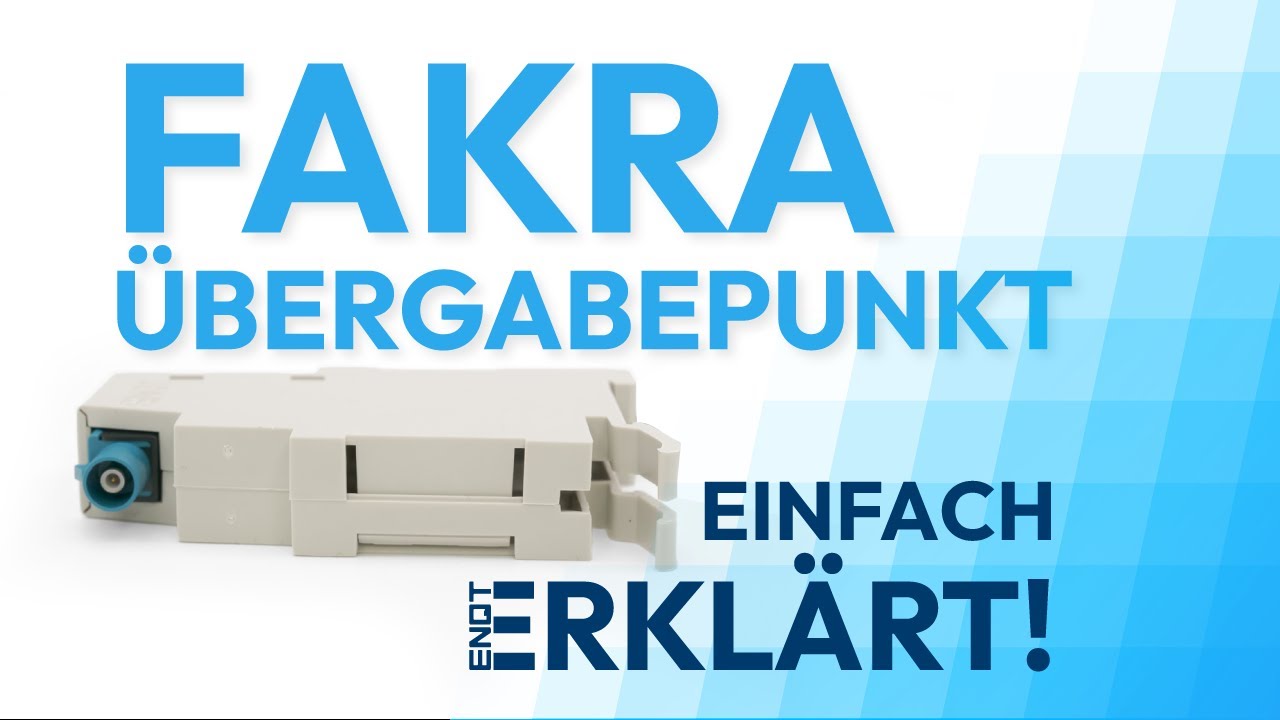

FAKRA-Z Transfer Point
The FAKRA-Z transfer point allows you to relocate one antenna socket of the Smart Meter Gateway (SMGW) from the sealed area into the customer accessible area. This makes it easier to install antennas in or at the cabinet.
The FAKRA-Z transfer point allows you to relocate one antenna socket of the Smart Meter Gateway (SMGW) from the sealed area into the customer accessible area. This makes it easier to install antennas in or at the cabinet. In addition, antennas can be added or replaced later without the need for re-sealing, which significantly reduces the cost of reworking. If the FAKRA-Z transfer point is used for the LMN-A connection of the gateway, this can considerably simplify the subsequent installation of an LMN antenna for wireless M-Bus.
Technical Details
| Weight | 0,030 kg |
|---|---|
| Dimensions | 10 × 10 × 1,8 cm |
| Color | |
| Connector | FAKRA-Z (right-angled female Connector at the Cable End, male Connector in DIN Rail Housing) |
| Length of Cable | |
| Country of Origin | Germany |
| HS Code | 85442000 |
| Mounting Type | DIN Rail Mounting / Tool-free Installation and Removal |
| Product Type | Extension Cable with attached DIN Rail Housing |
| Temperature Range | |
| Flammability | flame-retardant in Accordance with UL 94 V-0 |
| Conformity | RoHS, WEEE, CE |
