StaticProbe
The StaticProbe Pro is a stationary measuring unit for continuous monitoring of the network connection at a location.
It automatically records the availability and quality of mobile connections in 4G (LTE) and 5G networks as well as in Wi-Fi (2.4/5/6 GHz) – all in one compact device.
In addition to the monthly base price of 119€, a one-time setup fee of 99€ will be charged.
The StaticProbe is a monitoring device designed for the continuous assessment of network connectivity at a fixed location. It automatically measures and records the availability and quality of both cellular networks (4G/LTE) and WiFi (2.4 / 5 / 6 GHz)—all integrated into a single, compact device.
Installation is straightforward, and the device is fully configured and managed remotely through a web-based portal.Within the portal, intuitive dashboards provide a clear overview of the network status, enabling rapid identification of connectivity issues and in-depth root cause analysis. Users can define service thresholds and configure alerts to be notified of any disruptions or deviations from expected performance levels, allowing for early detection and targeted resolution of network problems. Additionally, built-in reporting tools support long-term monitoring and help ensure SLA (Service Level Agreement) compliance through structured documentation.
The StaticProbe is equipped with a built-in multi-provider SIM card and an internal battery, ensuring continued operation even during local network outages or power failures. This robust design provides a dependable foundation for enhancing operational stability, minimizing downtime, and reducing the load on IT support teams.
Scope of delivery
- StaticProbe
- User manual
- Compatible PoE injector for power supply (including power supply unit)
- Network cable (3 m)
- SIM-Tool
- Mounting accessories (appropriate screws and dowels)
Local monitoring of mobile phone signals
Provider-independent measurement
Support for all radio networks
Detection of significant changes in mobile communications
Detection of power failures
Technical Details
| Weight | 1,640 kg |
|---|---|
| Dimensions | 28,5 × 22 × 8,6 cm |
| Technology | 2G / GSM, 3G / UMTS, 4G / LTE, Wi-Fi 4/5/6/6E |
| Connector | RJ45 (LAN/power supply) |
| Conformity | RoHS, WEEE, CE |
| Country of Origin | Germany |
| HS Code | 85176990 |
| Mounting Type | Wall-mount using screws | Pole-mounting possible (requires extra materials) |
| Frequency Bands Cellular Networks | LTE-TDD: B38 / 39 / 40 / 41, 2G: 850 / 900 / 1800 / 1900 MHz, 3G: B1 / 2 / 4 / 5 / 6 / 8 / 19, LTE-FDD: B1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 13 / 18 / 19 / 20 / 25 / 26 / 28 |
| WiFi Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| SIM card | Additional 2 external SIM card slots (nano format, 4FF) |
| Features Cellular Networks | Detection and active test of all usable cellular networks, Measurement of latency (ping, RTT in ms) |
| Features WiFi | Active connection to pre-configured networks, Test of Internet access, Passive detection of receivable networks and BSSIDs, Test of service availability (HTTP/HTTPS), Per-channel measurement of noise level/interference and channel utilization |
| Configuration & Management | The device is configured and managed completely remotely via web-based portal. The portal connection is established fully-automated via cellular network. |
| Antenna Type | Fully integrated MIMO antenna system for cellular networks (2×2) and WiFi (2×2) |
| Internal Battery | Li-Ion, 3,500 mAh, up to 5 hours battery back-up time |
| Power Supply | IEEE 802.3af Power over Ethernet (15 W) | Compatible PoE injector is included (IEC 60320/C6 socket) |
| Area of Use | Indoors only |
| Temperature Range | 0°C – 45°C (for operation and storage) |
| Humidity | 5% – 95% RH (non-condensing) |
- Wi-Fi 4&5
- Wi-Fi 6 & 6E
- Wi-Fi channel quality
- Wi-Fi Speed Test
- Backup battery for power failures (8-10 hours)
- LTE
- LTE Ping Test
- LTE Speed Test
- 5G
- 5G Ping Test
- 5G Speed Test
- Testing our own services
- Detailed mobile network information
- Wi-Fi 4&5
- Wi-Fi 6 & 6E
- Wi-Fi channel quality
- Wi-Fi Speed Test
- Backup battery for power failures (8-10 hours)
- LTE
- LTE Ping Test
- LTE Speed Test
- 5G
- 5G Ping Test
- 5G Speed Test
- Testing our own services
- Detailed mobile network information
- Show functions
- Wi-Fi 4&5
- Wi-Fi 6 & 6E
- Wi-Fi channel quality
- Wi-Fi Speed Test
- Backup battery for power failures (8-10 hours)
- LTE
- LTE Ping Test
- LTE Speed Test
- 5G
- 5G Ping Test
- 5G Speed Test
- Testing our own services
- Detaillierte Mobilfunk Netzinformation
- Show functions
Downloads

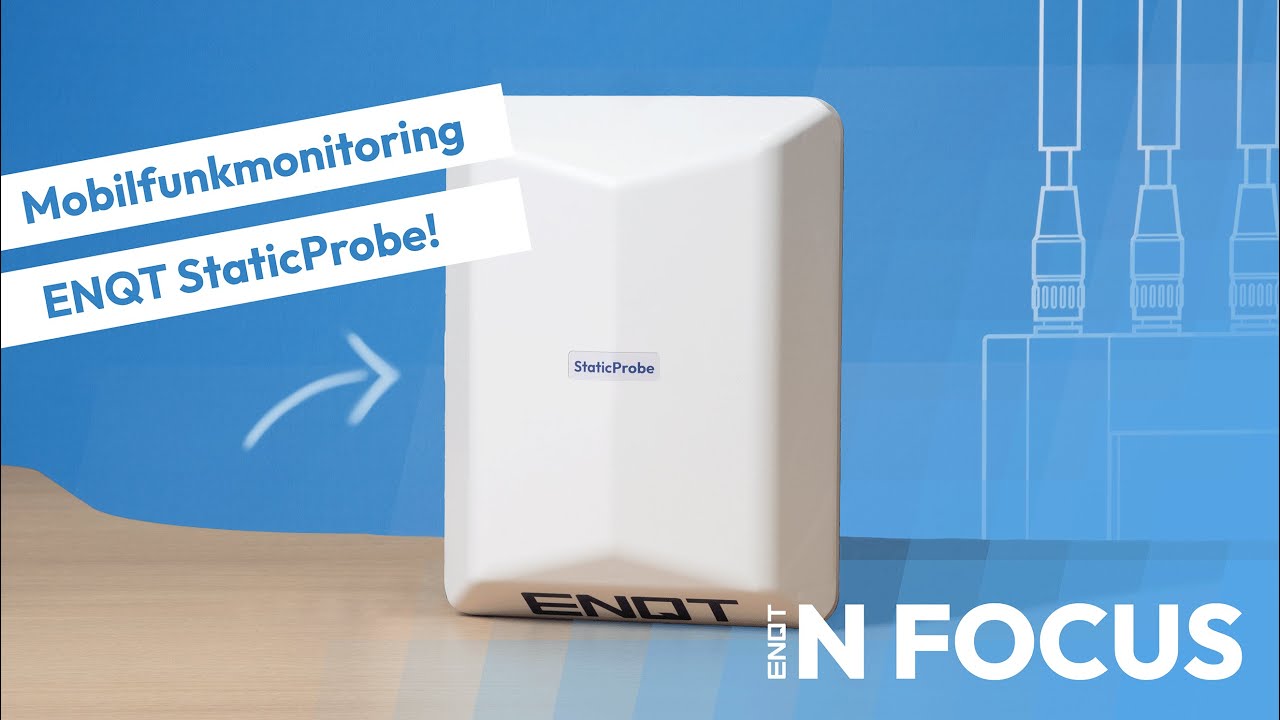

Produktvideo
